Using remote restart and reset with the HDL410

When an HDL410 system is enrolled into Nureva^® Console, it’s possible to remotely manage the device. This includes remotely restarting and resetting the system.

Remotely restarting the HDL410 system

When troubleshooting an issue, restarting the HDL410 system could be required. Remotely restarting the device will force a power cycle, turning the system off and then on again. To remotely restart the system, it must be online and connected to Nureva Console cloud. Remotely restarting the device is not available if the device is offline.

An HDL410 system can be restarted if there is an issue with the connect module or if the Ethernet cable is disconnected from the microphone and speaker bar.

Note: While the system restarts, it will be shown as offline in Nureva Console cloud. The device will not be available for use in a conference until the restart is complete.

Before beginning the restart

Ensure the system is not in use before remotely restarting it. If the system is restarted while in use, the device will no longer be connected to the conferencing application and will be dropped from the conference.

How to remotely restart the system

1. Go to console.nureva.com in a supported browser.

2. Sign in to Nureva Console.

3. From the Rooms dashboard select the room with the HDL410 system.

4. Select the HDL410 from the list of devices.

5. Scroll to the bottom of the dashboard and locate Recovery.

6. Open the Reset and restart menu.

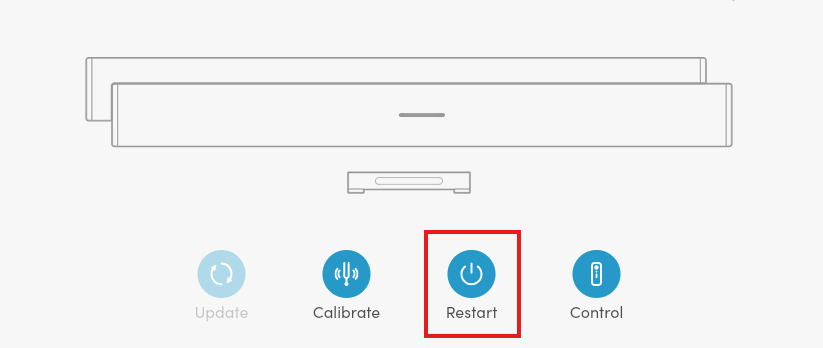

7. Press the Restart button.

8. In the dialog box, press Restart device.

This will power cycle the device. Once the restart begins, the device status will be Offline. The device cannot be used during the restart process, which may take up to 5 minutes.

If the issue persists after restarting the device

A remote restart may not address all issues. If issues persist with the device after a restart, check the status indicator lights on the connect module for further diagnosis.

What do the LEDs on the connect module mean?

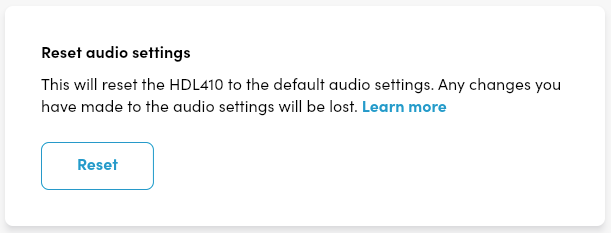

Remotely resetting the HDL410 system audio settings

When troubleshooting an issue, it might be necessary to return the HDL410 system to its default audio settings. Pressing the Reset button will restore the audio settings to their original default setup. The HDL410 must be online and connected to the Nureva Console cloud to be remotely reset. Remotely resetting the device is not available if it is offline.

How to remotely reset the system

1. Go to console.nureva.com in a supported browser.

2. Sign in Nureva Console.

3. From the Rooms dashboard select the room with the HDL410 system.

4. Select the HDL410 from the list of devices.

5. Scroll to the bottom of the dashboard and go to Recovery.

6. Open the Reset and restart menu.

7. Press the Reset button.

The device will now be back to the original default audio settings.
