The Nureva® HDX series systems feature status indicator lights on the front and rear of the CM3 hub. These indicator lights provide real-time feedback during installation and normal operation, and they can help diagnose configuration, connectivity, and system health issues.

Understanding the front status indicator lights

The front indicator panel provides primary system feedback and is visible to users during setup and operation. The Indicator LEDs use standard traffic-light color conventions (green, yellow, red) to align with Console status reporting. Modulation (solid, pulsing, blinking) provides additional context for troubleshooting.

Color and behavior key

Primary colors

Light pattern

Green

  • Working and fully optimized.

Solid

  • Stable state

Yellow

  • Working, but needs attention or improvement.

Blinking

  • System fault; power cycle required

  • The status light is on for 1 second and then off for 4 seconds.

Red

  • Error state and requires action.

Pulsing

  • Transition or processing (for example, startup or IP assignment)

  • The status light is on for 0.25 seconds then off for 0.1 seconds.

Power indicator

Indicator LED

Description

The HDX system hub has a status light to indicate when the system is powered on.

Solid

System hub is powered on.

Off

System hub is powered off.

Audio bar and microphone pod indicators (Ports 1–6)

Indicator LED

Description

Icon for the HDX device ports on the HDX system hub. There are 6 HDX device connection ports.

Green

Solid: An audio bar or mic pod is connected to specified HDX device port.

Pulsing: An audio bar or mic pod is physically connected to the specified port, but an update is required.

Off

No audio bar or microphone pod is connected to this port.

USB indicator

Indicator LED

Description

HDX system hubs feature a USB port with a status light displayed on the front of the system hub.

Green

Solid: Successful USB connection and recognized as a USB device.

Yellow

Solid: The system requires a device software update and is not available as an audio device.

Off

No USB connection or the device is not recognized by the operating system.

Network status indicators (A and B)

Indicator LED

Description

HDX system hubs feature 2 network ports - ports A and B. Each port has a status light displayed on the front of the system hub.

Green

Solid: The device is connected to a network and has an IP address.

Pulsing: Hub is connected to a network and is being assigned an IP address.

Yellow

Solid: Signifies one or more of the following.

  • No connection to a gateway

  • DHCP IP address has not been obtained yet

  • Successful direct Ethernet connection

Pulsing: The device is checking the local area network (LAN) connection.

Red

Solid: Hub is connected to a network but not routable.

Blinking: Unknown system error; power cycle required.

Off

Ethernet cable not connected.

Note: Use our network connectivity tool to diagnose configuration issues. If the network passes the connectivity test and power cycling the device does not help, please contact Nureva support.

Cloud (Console) indicator

Indicator LED

Description

Green

Solid: Device is enrolled and communicating with Nureva services.

Pulsing: Signifies one or more of the following.

  • Device is connecting to the internet

  • Device is connecting to Nureva Console

  • Device is enrolling with Nureva Console

Yellow

Solid: The device has communication with Nureva Console cloud and is ready to be enrolled.

Pulsing: Connecting to the internet, Nureva Console or enrolling after a red or yellow state.

Red

Solid: No communication with Nureva Console services or the internet.

Blinking: Unknown system error and the device should be power cycled.

Off

The device is not connected to the internet.

Overheating warning

Indicator LED

When the HDX system hub is overheating all the status lights turn red to indicate the device will be shutting down to cool off.

Description

Red

The connect module has overheated and needs to be shut down.

  • Unplug the connect module, wait at least 10 minutes and plug it in again.

  • If this issue persists, please contact Nureva support.

Understanding the rear status lights

Device connection (PoE) port lights

Each PoE port has two LEDs (left: green, right: red).

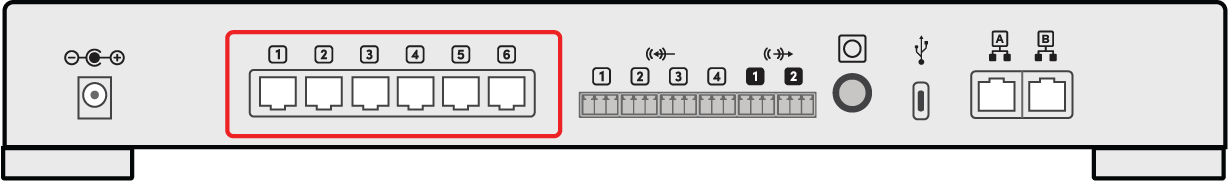

Illustration showing the device connection ports on the HDX system hub. Rear view

Indicator LED

Description

HDX system hub rear status lights for the PoE ports.

Green – Solid: Audio Block or Mic Pod connected and functioning normally.

Red – Solid, Green – Off: No activity; hub not powered or nothing connected.

Red – Blinking, Green – Off: Incorrect use; port is connected to an IP network instead of an Audio Block or Mic Pod.

Red – Blinking, Green – Blinking: Device incorrectly connected through a network switch.

Red – Solid, Green – Solid: PoE error; port shut down due to excessive power draw.

Network port connector lights

Each network port has two LEDs (left: green, right: amber).

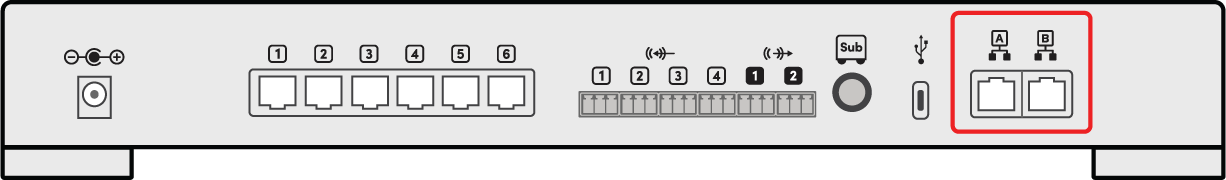

Illustration showing the rear network ports on the back of the HDX system hub. Rear view

Indicator LED

Description

Port status lights on the back of the HDX system hub.

Amber – Blinking, Green – Solid: Network is connected and data is transferring normally.

Amber – Off, Green – Off: Hub not powered or Ethernet cable disconnected.

Amber – Off, Green – Solid: Ethernet cable connected but no data communication detected.
